AYANEO Flip 1S DS Review: Experience the future of handheld gaming with the AYANEO Flip 1S DS Review—a deep dive into its dual-screen OLED and IPS display, powerful AMD Ryzen HX 370 performance, customizable controls, emulation capabilities, battery benchmarks, and more in this complete AYANEO Flip 1S DS Review guide.
Table of Contents
AYANEO Flip 1S DS Key Features
| Feature | Specification |
|---|---|
| Primary Display | 7-inch OLED, 1920×1080, 144Hz, Touchscreen |
| Secondary Display | 4.5-inch IPS, 1620×1080, 3:2 Aspect Ratio, Touchscreen |
| CPU Options | AMD Ryzen 7 8840U or AMD Ryzen AI HX 370 |
| GPU | Radeon 780M (8840U) / Radeon 890M (HX 370) |
| RAM | 16GB / 32GB / 64GB LPDDR5X @ 7500MT/s |
| Storage | 1TB / 2TB PCIe 4.0 M.2 2230 SSD |
| Battery | 45Wh Lithium Polymer |
| Connectivity | 2x USB4, Wi-Fi 6E, Bluetooth 5.2, 3.5mm Audio Jack, microSD Slot |
| Controls | TMR Analog Sticks, Hall-Effect Triggers, Membrane Face Buttons |
| Operating System | Windows 11 |
| Special Features | Dual-Screen Multitasking, iSpace Software, Fingerprint Login, Replaceable Grips |

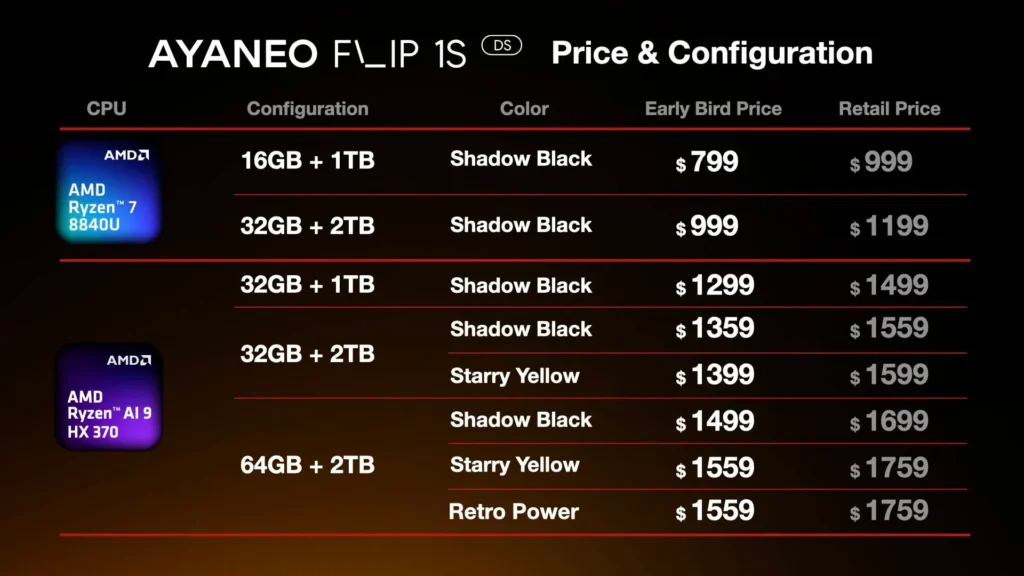

| Price | $799 – $1,759 |
AYANEO Flip 1S DS Detailed Review
A New Challenger in the Handheld Gaming Arena
Welcome to our deep dive into the AYANEO Flip 1S DS Review—a game-changing dual-screen handheld PC that’s here to redefine portable gaming. If you’re a handheld enthusiast or someone constantly on the lookout for the next innovation in the portable gaming world, this one’s going to grab your attention fast. The AYANEO Flip 1S DS doesn’t just ride the wave of recent handheld trends—it creates a new one entirely, led by its striking dual-screen configuration and powerhouse internals.
While other devices focus solely on power or ergonomics, the AYANEO Flip 1S DS merges both with a beautifully integrated second display that opens up a realm of possibilities. Whether it’s multitasking between games and apps, emulating your favorite retro consoles, or diving into productivity, this is a unit made to turn heads—and turn the tables on the competition.
The demand for high-performance handhelds is growing, but no other device on the market today comes equipped with such a unique offering at this level. In this AYANEO Flip 1S DS Review, we’ll explore everything from build quality and display performance to battery life and real-world gaming tests, so stick around—this one’s a beast worth understanding in full.
What Makes the AYANEO Flip 1S DS Review Special?
So, what’s the hype about? For starters, the AYANEO Flip 1S DS packs in AMD’s next-gen hardware, a 7-inch OLED screen capable of 144Hz refresh rate, and a bottom-mounted 4.5-inch IPS display with a 3:2 aspect ratio. That secondary screen isn’t just for show—it’s touch-enabled, fully interactive, and can serve as anything from a game controller, system monitor, virtual keyboard, or second desktop for multitasking.
But performance isn’t the only trick up its sleeve. The AYANEO Flip 1S DS Review reveals surprising attention to ergonomics, featuring medium-sized TMR sticks, hall-effect linear triggers, and swappable grips. With multiple color variants, including a charming Retro Power edition with a golden finish, it also scores high on aesthetic appeal.
And let’s not forget the versatility in configuration. Whether you go for the AMD Ryzen 7 8840U or the high-end HX 370, you’re getting a system that can push frames at 1080p while remaining portable enough to slip into a sling bag. Whether you’re gaming, streaming, working, or multitasking your way through a day, this is one device designed to do it all.

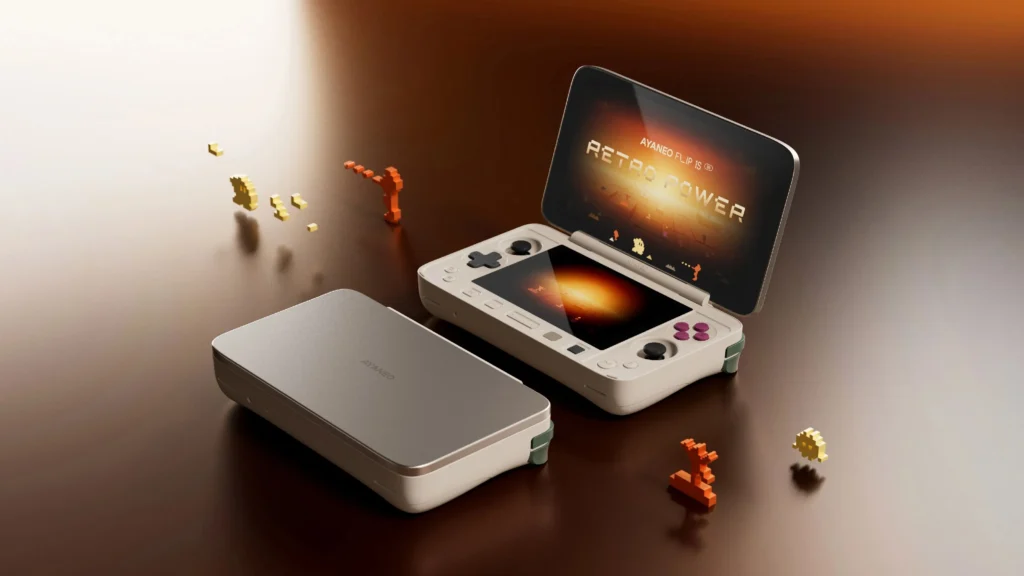

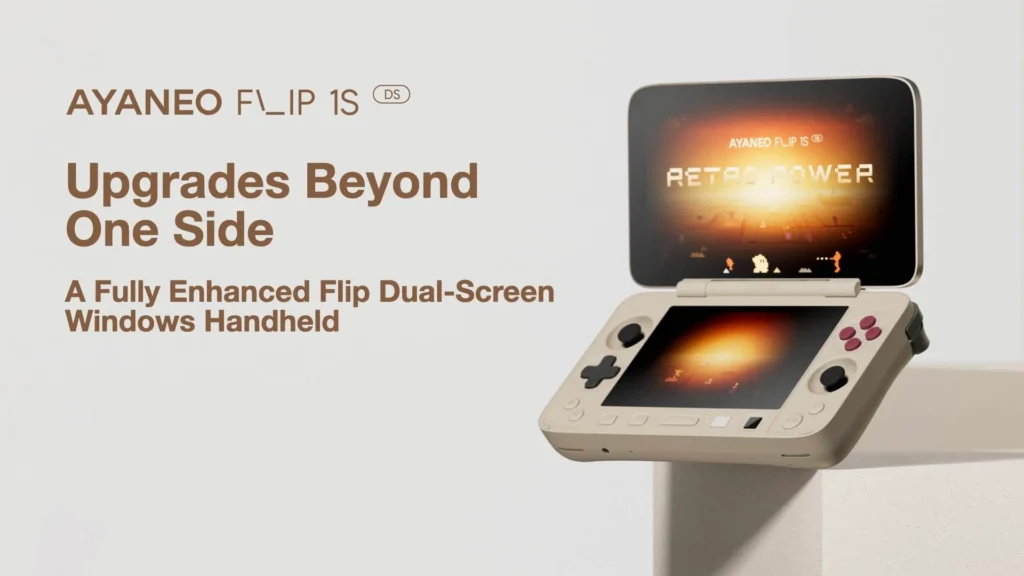

Design and Build Quality
Sleek Form Factor with a Retro Twist

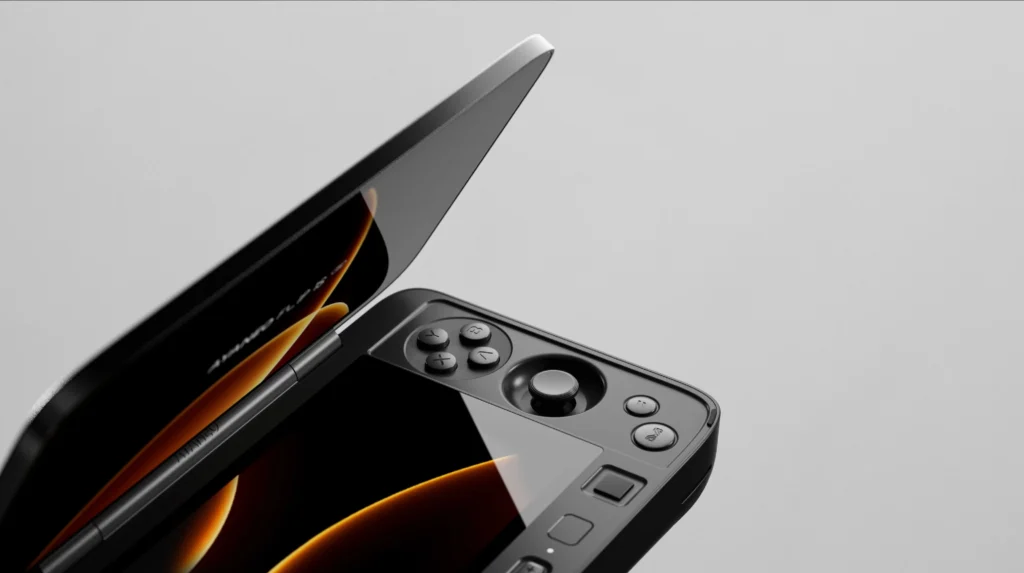

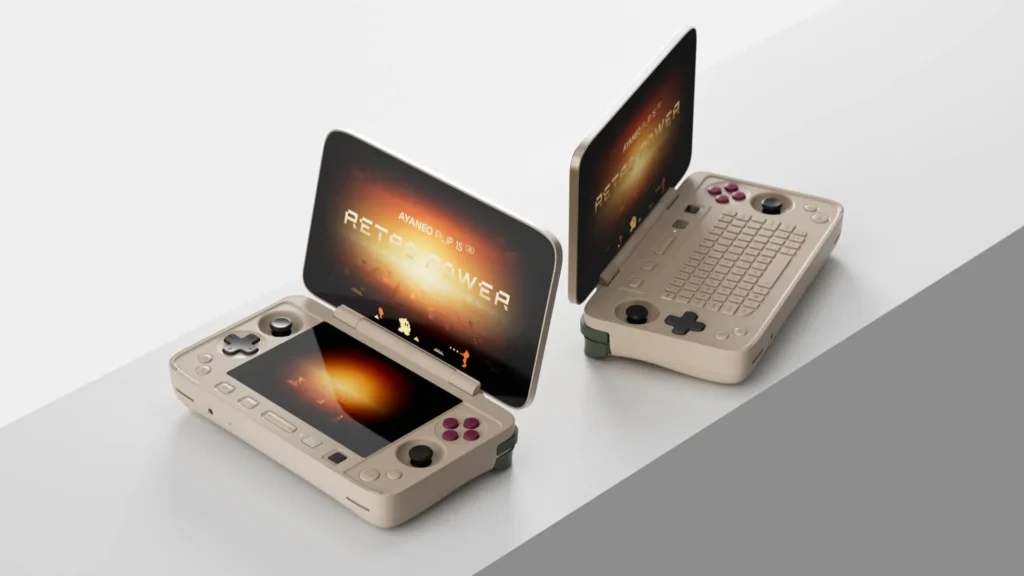

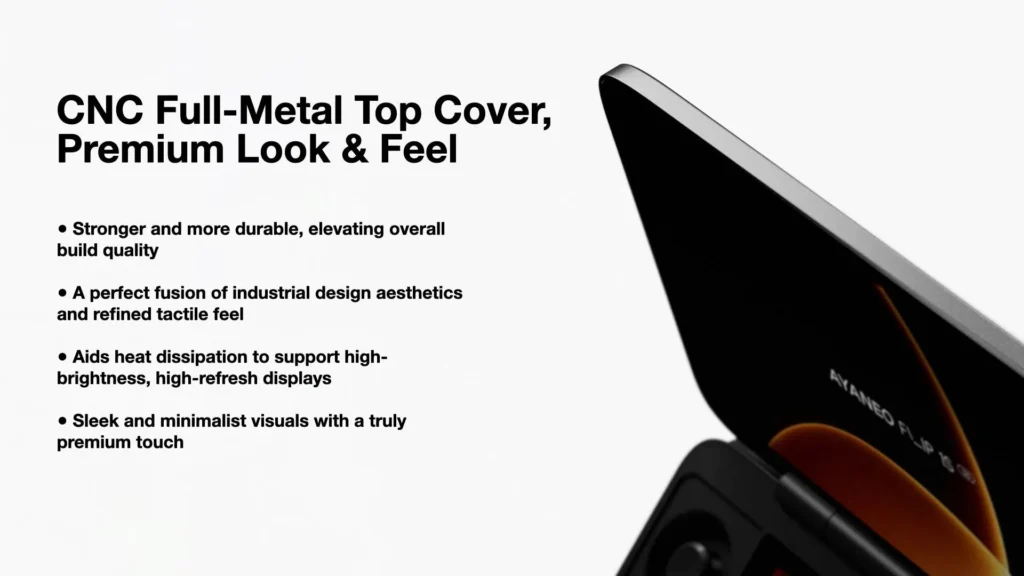

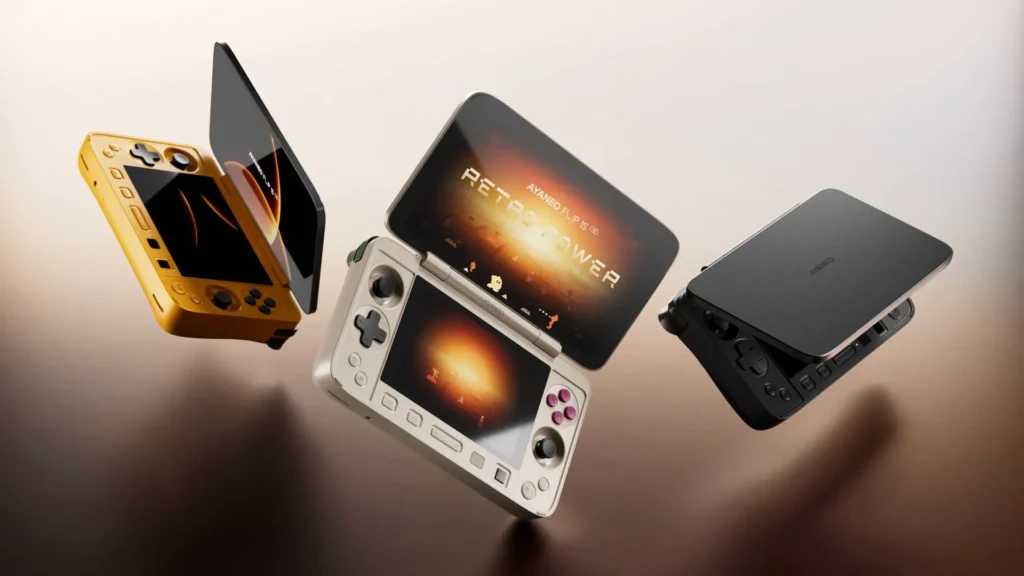

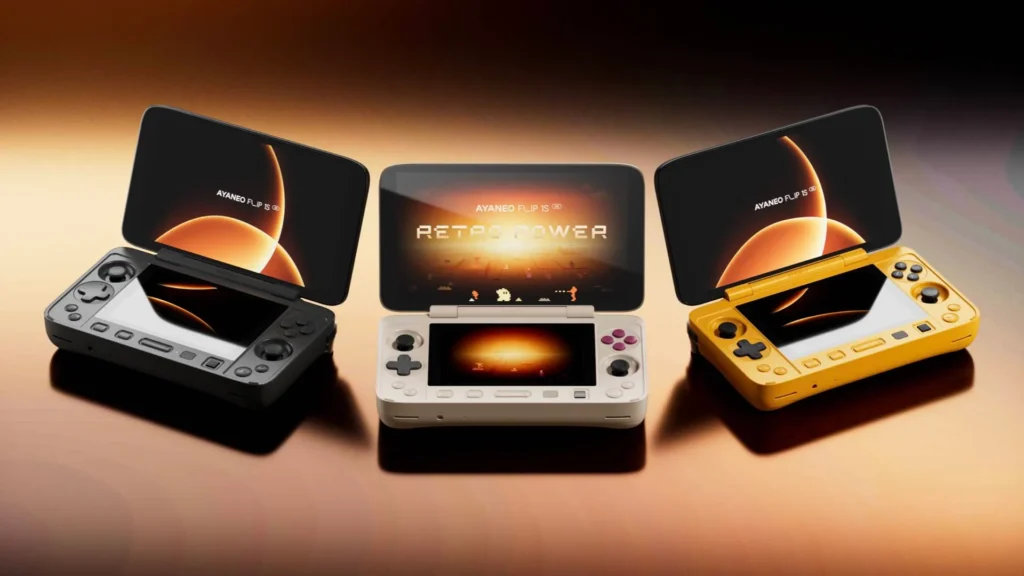

Let’s kick off the AYANEO Flip 1S DS Review with what you first notice—the design. At a glance, the AYANEO Flip 1S DS looks like a futuristic cross between a gaming console and a productivity workstation. With smooth edges, an adjustable hinge mechanism, and a compact flip design, it’s an ergonomic triumph that doesn’t skimp on visual appeal. One of the standout color options is the Retro Power version, with its golden metallic top that screams vintage style but houses cutting-edge internals.
Despite its dual-screen setup, the device remains surprisingly slim and comfortable to hold. The included replaceable grip options allow users to customize their handling experience based on hand size and grip style. The overall materials feel premium, and there’s a clear effort to make this device feel more solid and balanced than many competitors.

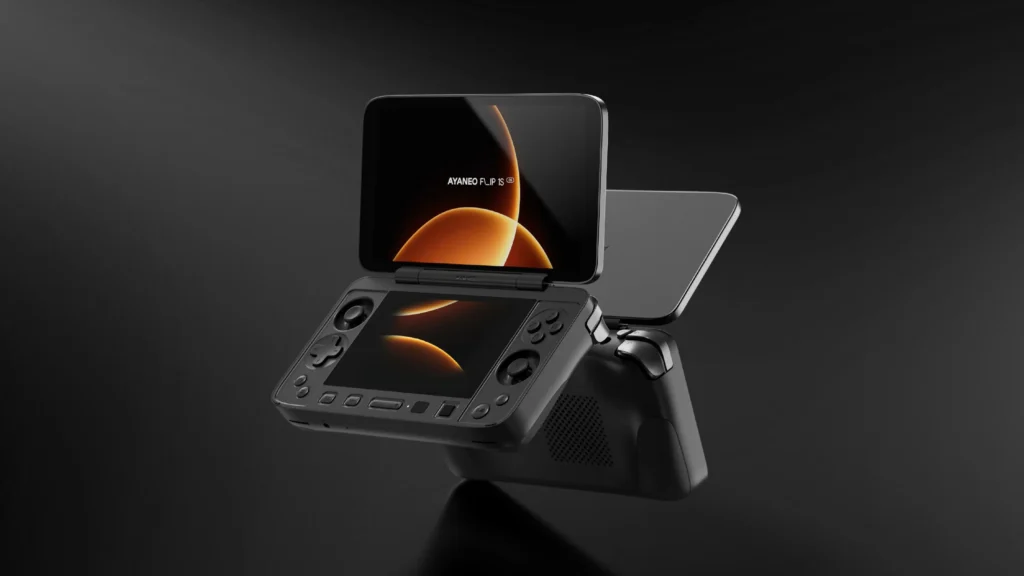

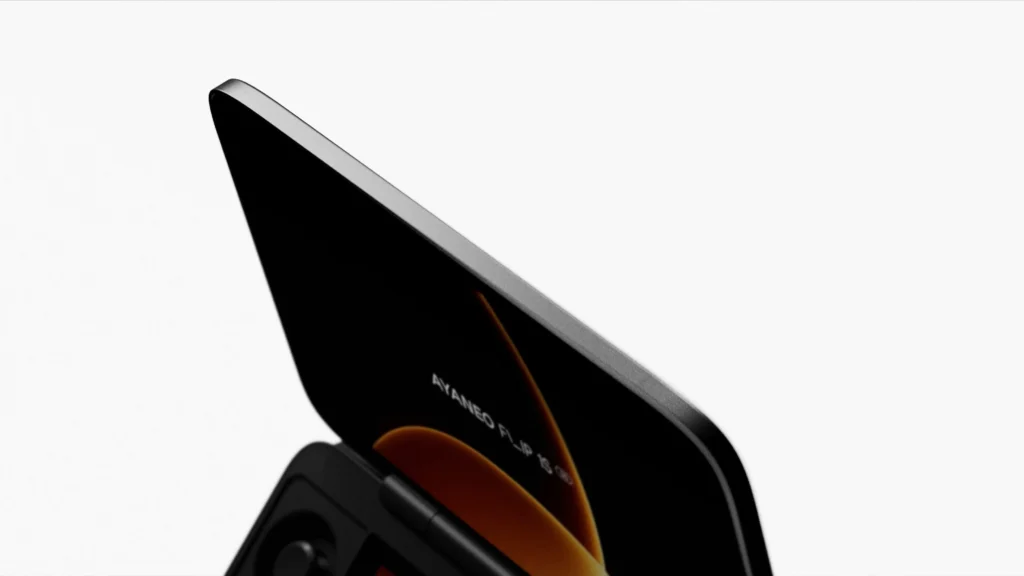

The hinge design is crucial here. It flips up with confidence, snapping into place securely without wobbling. That hinge allows the AYANEO Flip 1S DS to function like a mini laptop, making it perfect not just for gaming, but also for streaming content, coding, or browsing the web. And yes, the clamshell form factor also helps protect those precious dual displays during transport.

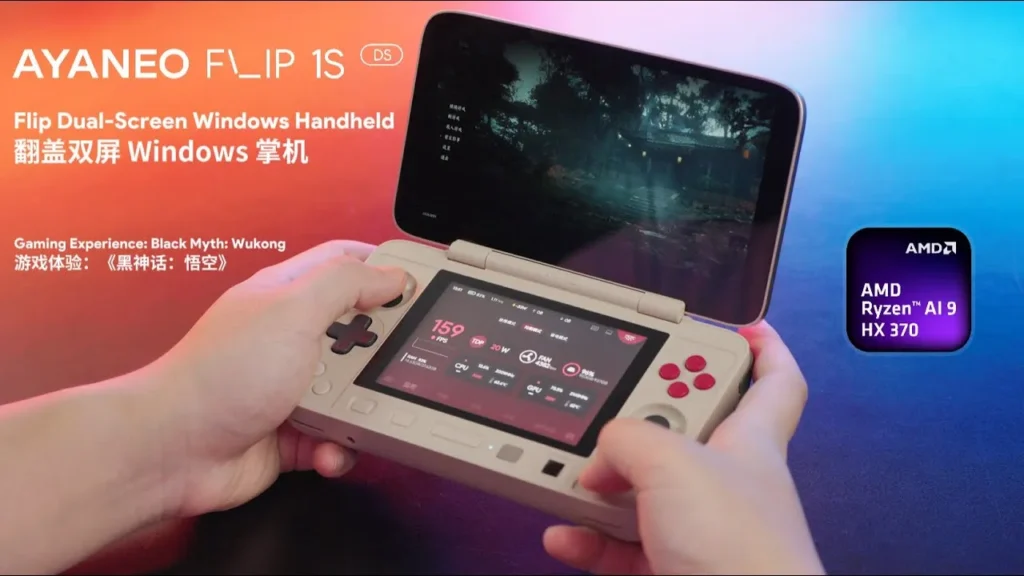

Dual-Screen Display: OLED Meets IPS

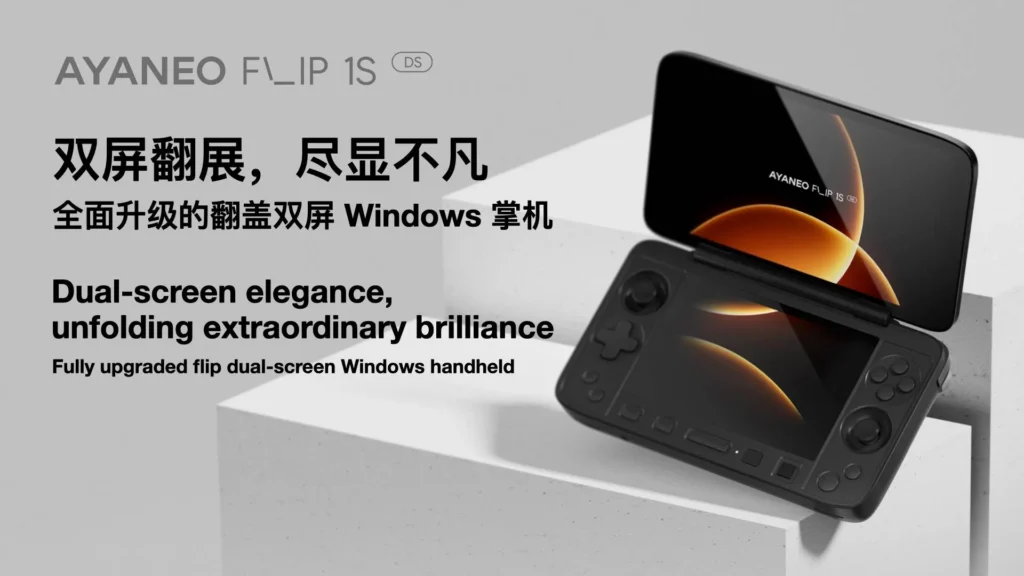

What truly elevates the AYANEO Flip 1S DS Review is its dual-display configuration. On top, you get a stunning 7-inch OLED panel. It’s not just good—it’s among the best displays on any handheld PC today. Supporting up to 144Hz refresh rate, this screen delivers deep blacks, vibrant colors, and a buttery-smooth experience in games or general use. It offers multiple refresh rate settings, including 60Hz, 90Hz, 120Hz, and 144Hz, giving users precise control over performance and battery life.

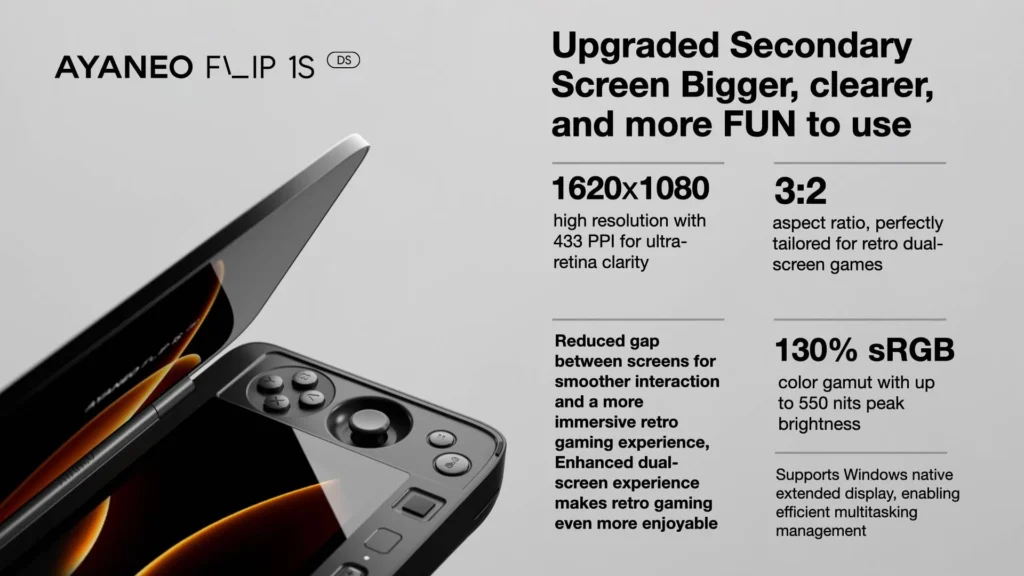

Below that is a 4.5-inch IPS touchscreen with a rare 3:2 aspect ratio and a resolution of 1620×1080. While it’s not OLED, it holds its own with solid brightness, crisp visuals, and excellent viewing angles. The fact that both screens are touch-enabled makes navigation incredibly intuitive. You can drag windows between screens, launch apps on either one, or use it as a secondary monitor for enhanced productivity or gameplay stats.
Display Specs and User Experience in the AYANEO Flip 1S DS Review
Here’s a deeper dive into display specs for the AYANEO Flip 1S DS Review:
| Display | Type | Resolution | Aspect Ratio | Refresh Rate | Touch Support |
|---|---|---|---|---|---|
| Top Screen | 7-inch OLED | 1920×1080 | 16:9 | Up to 144Hz | Yes |
| Bottom Screen | 4.5-inch IPS | 1620×1080 | 3:2 | 60Hz | Yes |
OLED displays in handhelds are still relatively rare, and the AYANEO Flip 1S DS capitalizes on that with stunning results. The clarity is jaw-dropping, especially in games with vibrant art styles or dark scenes. The IPS panel below complements it perfectly, acting as both a control hub and multitasking tool. Whether you’re tweaking your GPU clock settings in iSpace or chatting with friends in Discord while gaming, the secondary screen is never wasted space.
Display Performance and Functionality
7-inch OLED Display in the AYANEO Flip 1S DS Review

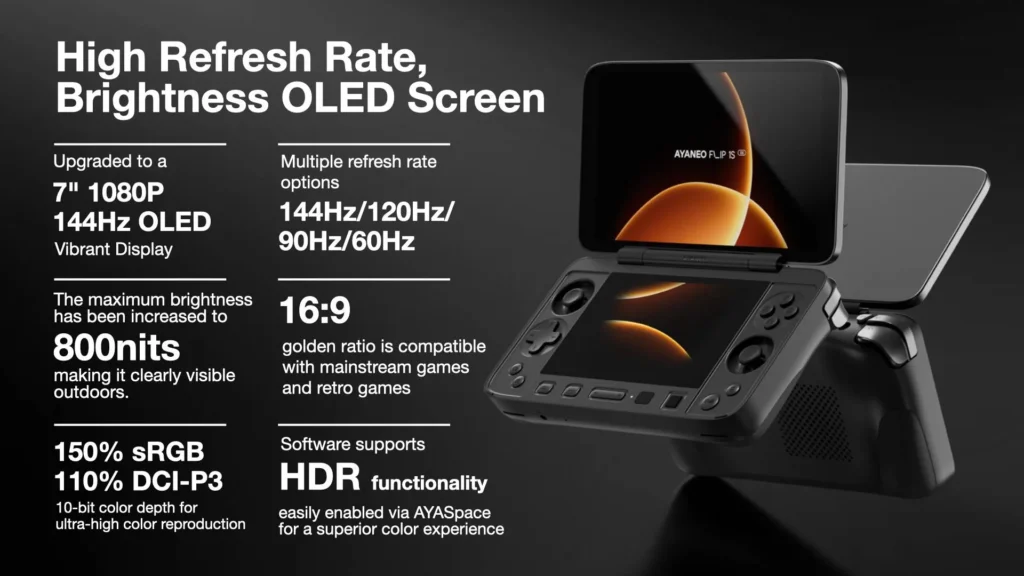

The top-mounted 7-inch OLED screen deserves its own section in this AYANEO Flip 1S DS Review. It isn’t just a high-refresh display—it’s an ultra-responsive, color-rich panel that elevates gaming to another level. With 150% sRGB coverage and a peak brightness of up to 800 nits, even outdoor use is more feasible than you might expect for a device of this size.
Despite lacking VRR (Variable Refresh Rate), the selectable refresh modes still give gamers enough flexibility to tailor the visual experience to the task at hand. Whether you want to crank it up to 144Hz for buttery FPS gameplay or drop it down to 60Hz to save battery during a long retro session, this display can do it all.
Gaming on an OLED this good in handheld form is a rare treat. There’s no noticeable ghosting, and the high brightness keeps everything punchy and easy to read. Watching media is a joy as well, with rich contrast and true blacks making films and YouTube content pop in a way IPS displays simply can’t replicate.
4.5-inch Secondary IPS Display: A Multitasking Marvel

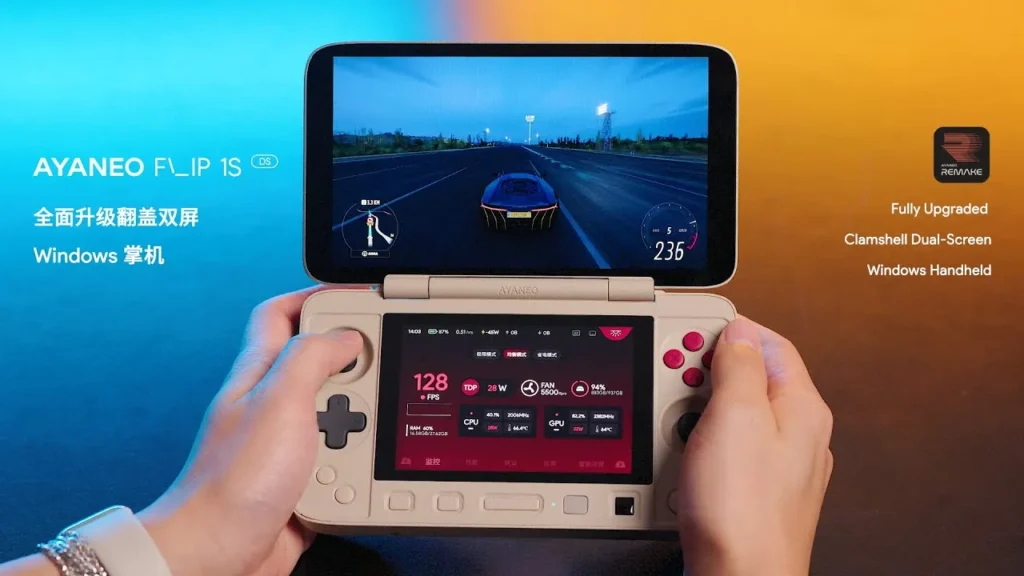

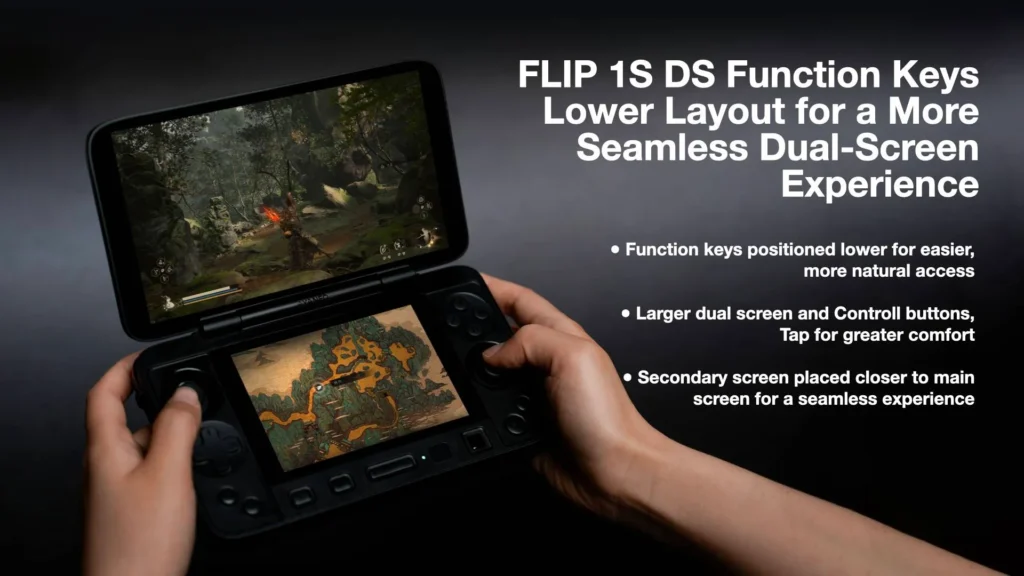

The secondary screen in the AYANEO Flip 1S DS Review isn’t just for show. This 4.5-inch IPS touchscreen offers full interactivity and is surprisingly sharp, with a resolution high enough to comfortably read text, monitor system performance, or run apps in split-screen mode.
Want to stream Spotify while gaming? Check. Monitor CPU usage or FPS in real time? Also check. The layout supports multitasking in a way that feels natural, not gimmicky. You can use it for everything from Discord chats and browser tabs to productivity tasks like note-taking or managing documents.
Best of all, the UI is optimized for this dual-screen setup. Swapping apps between displays is intuitive, and you can mirror, extend, or run completely independent tasks on each screen.
Touchscreen Precision and Dual-App Productivity
Both displays feature responsive touchscreen support, a critical component that transforms the AYANEO Flip 1S DS from a gaming device into a versatile productivity tool. The second screen can be used as a digital keyboard, a mouse pad, or even an app launcher. Whether you’re gaming, creating, or simply browsing the web, the touch experience feels fast, fluid, and accurate.
The dual-screen setup can also help creators who stream or multitask regularly. For instance, you could game on the top screen while monitoring OBS or reading live chat on the bottom. This kind of real estate is rare in handhelds, and it’s something that sets the AYANEO Flip 1S DS apart from every other device on the market.
Internal Specs and Configurations
CPU Powerhouses in the AYANEO Flip 1S DS Review

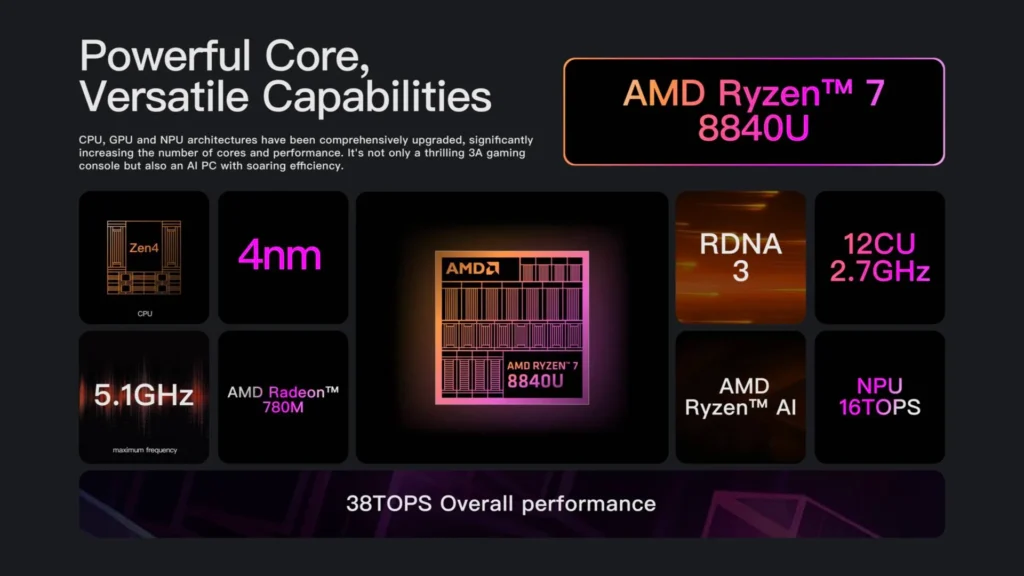

The beating heart of the AYANEO Flip 1S DS lies in its powerful CPU options. Buyers can choose between the AMD Ryzen 7 8840U and the flagship Ryzen AI HX 370. The latter is especially impressive, boasting 12 cores and 24 threads, with clock speeds reaching up to 5.1GHz. That’s desktop-class power in your hands—literally.
What’s more, the HX 370 is paired with a Radeon 890M GPU, based on RDNA 3.5 architecture with 16 compute units. This combo delivers surprising performance across modern AAA games and demanding emulators, even at moderate TDP levels.
RAM, Storage, and Expansion Options
Max Performance in the AYANEO Flip 1S DS Review
In terms of memory and storage, the AYANEO Flip 1S DS goes above and beyond the standard for handheld PCs. Starting from 16GB of LPDDR5X RAM and scaling all the way up to a staggering 64GB, it’s safe to say this device is future-proof when it comes to multitasking and heavy memory usage. All variants of RAM are rated at 7500 MT/s, which translates into rapid data access, smoother gameplay, and snappier application performance.
As for storage, the AYANEO Flip 1S DS features ultra-fast PCIe 4.0 M.2 2230 SSDs, with options up to 2TB. These aren’t just generous in size—they’re blazing fast in read/write speeds, ensuring quick boot times, near-instant game launches, and seamless multitasking between screens.
For those who want even more space, the unit supports external expansion via microSD card slot, making it a great companion for emulation libraries, media files, or additional app installations. Combine that with dual USB4 ports, and the AYANEO Flip 1S DS Review clearly showcases a handheld that doesn’t compromise on desktop-grade storage features.
Controls and Ergonomics

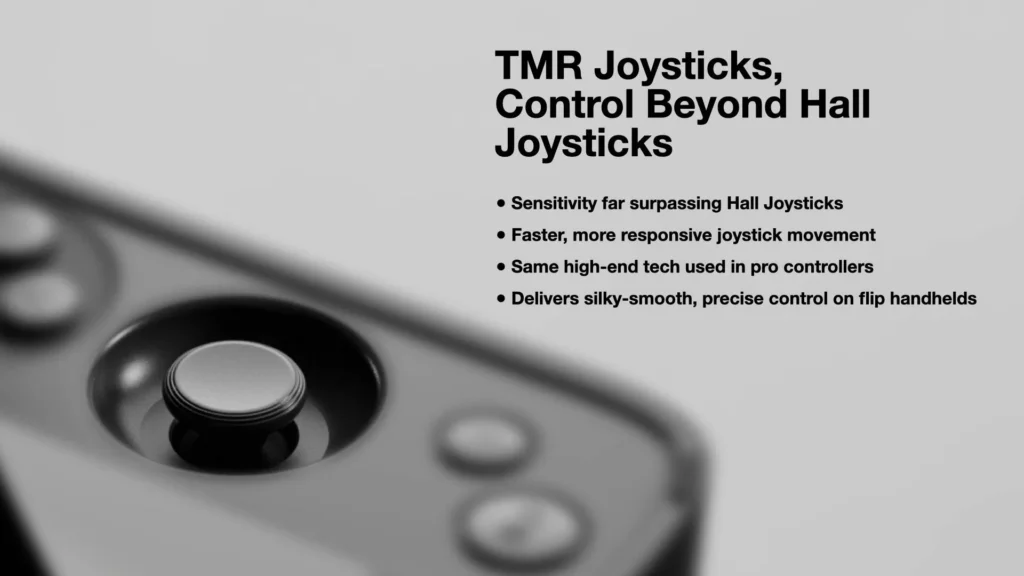

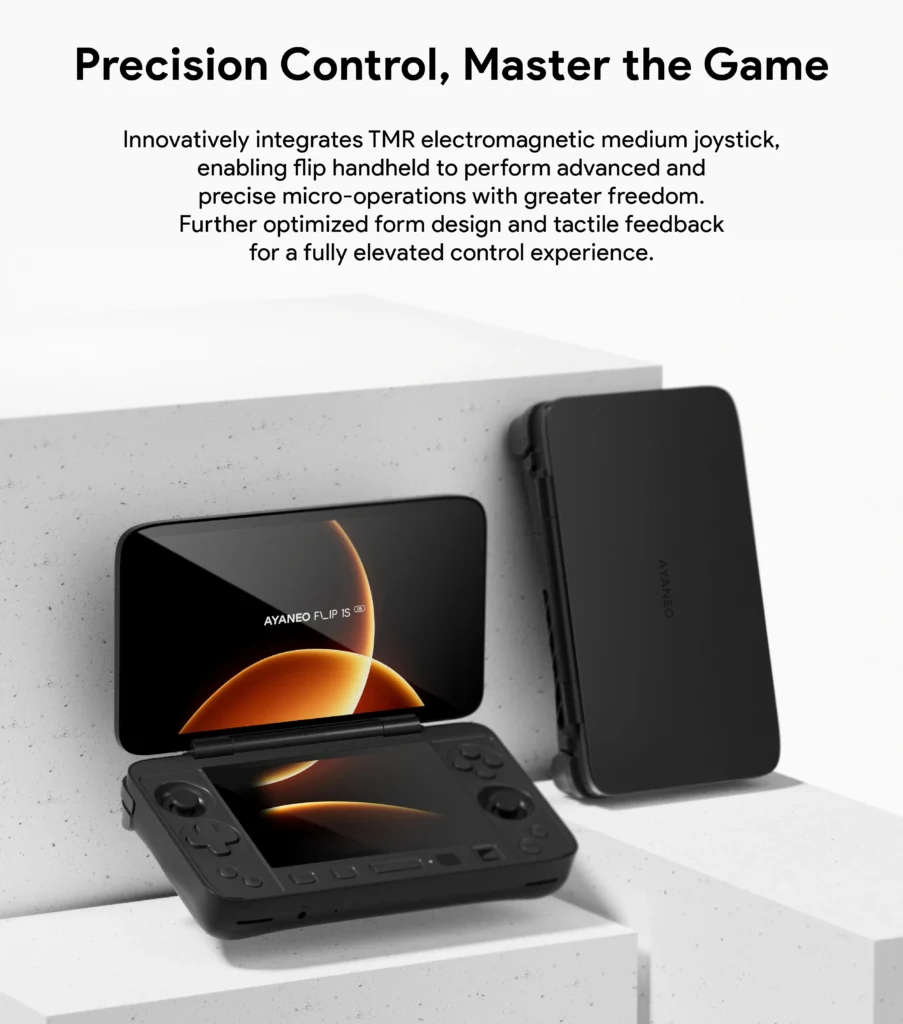

Joystick Performance and Trigger Responsiveness
If there’s one area where many handhelds fall short, it’s controls. But in the AYANEO Flip 1S DS Review, we find a device that treats input just as seriously as output. Starting with the medium-sized TMR analog sticks, they are slightly recessed into the body to allow the top screen to close flush, but that doesn’t hurt usability. In fact, these sticks offer smooth movement and consistent tracking for fast-paced games like shooters and racing titles.
The triggers are particularly impressive. Hall-effect linear triggers on the back provide nuanced, pressure-sensitive control, making them ideal for racing games, shooters, or any title where variable input is required. You can feather the accelerator in Forza Horizon 5 or gently squeeze the trigger in a stealth shooter with precision.

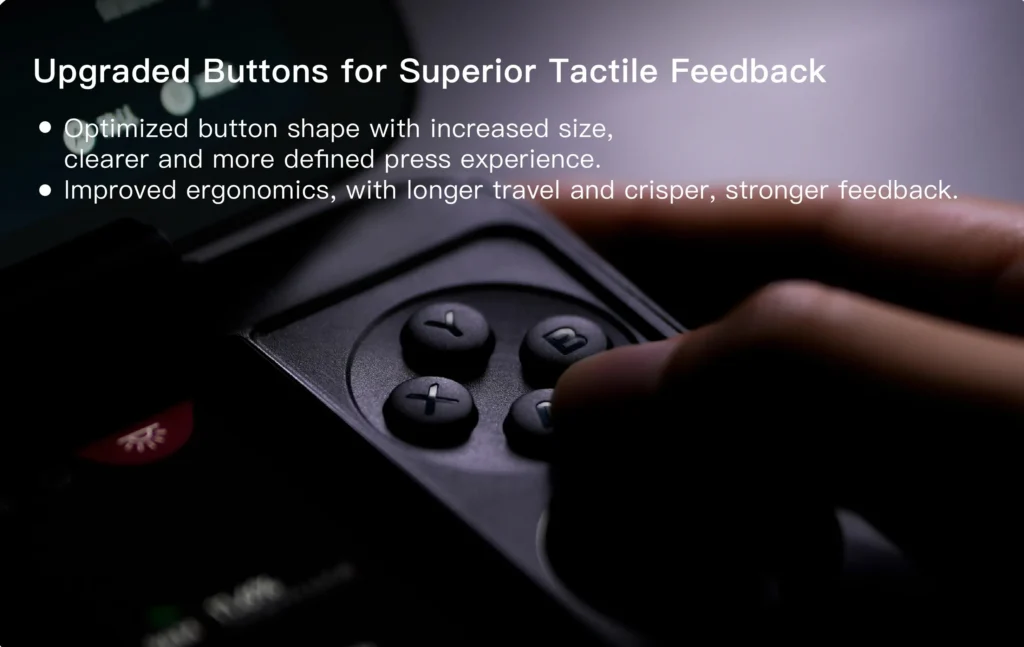

And let’s not forget the ABXY buttons, which have been slightly enlarged compared to previous AYANEO models. These are membrane micro switch buttons, and while they’re not mechanical, the tactile feedback is satisfying and fast. It’s a responsive, well-thought-out layout that adapts to both fast action games and more relaxed turn-based titles.

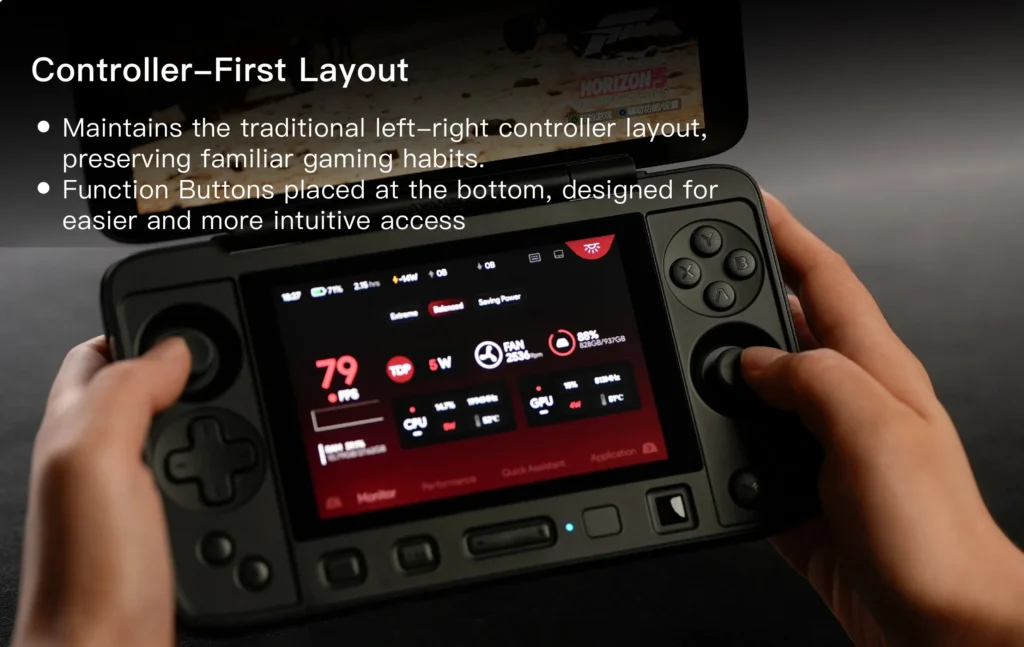

Grip Comfort and Button Layout in the AYANEO Flip 1S DS Review

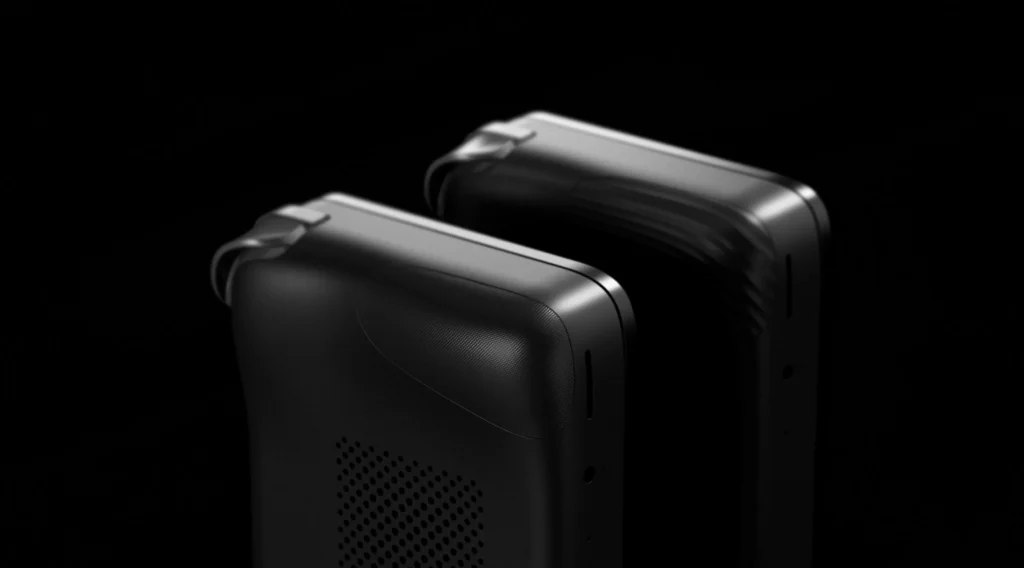

Comfort is key when using any handheld for long sessions, and the AYANEO Flip 1S DS nails this aspect with replaceable grips. It ships with two grip sets that can be swapped depending on your hand size and playstyle, which is a rare and very welcome addition.
The overall weight and distribution feel balanced, and the rounded bottom edges prevent hand fatigue, even after an hour or more of intense gameplay. The D-pad is positioned a bit lower than traditional layouts to accommodate the flip screen, but it remains highly usable for platformers or fighting games.
AYANEO has also included an optical mouse sensor and a fingerprint/power button combo for quick and secure logins. The mouse is surprisingly responsive, ideal for navigating Windows or clicking around the secondary screen without reaching for a physical mouse.
AYANEO Flip 1S DS Review Software and Features
iSpace Interface Overview

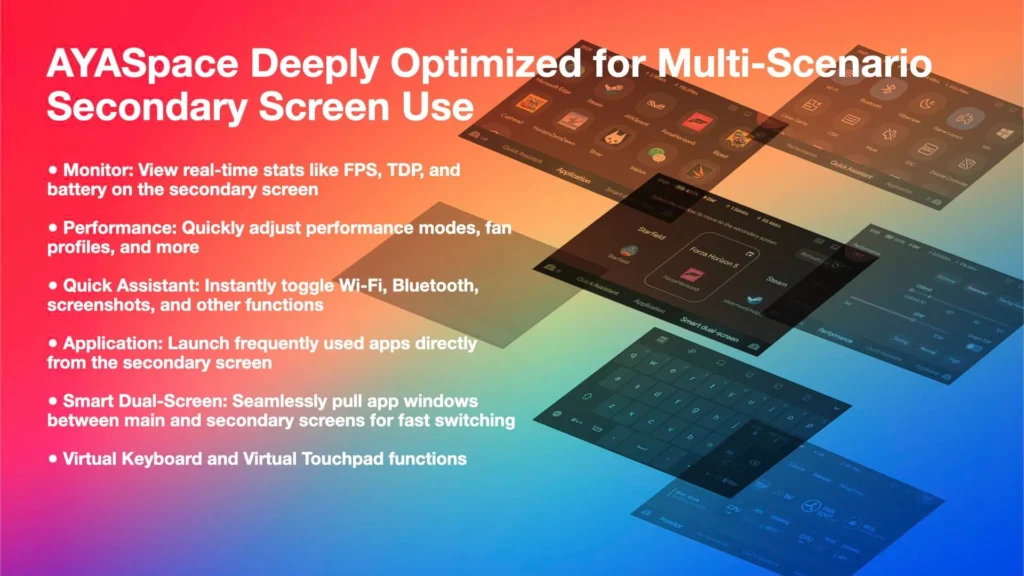

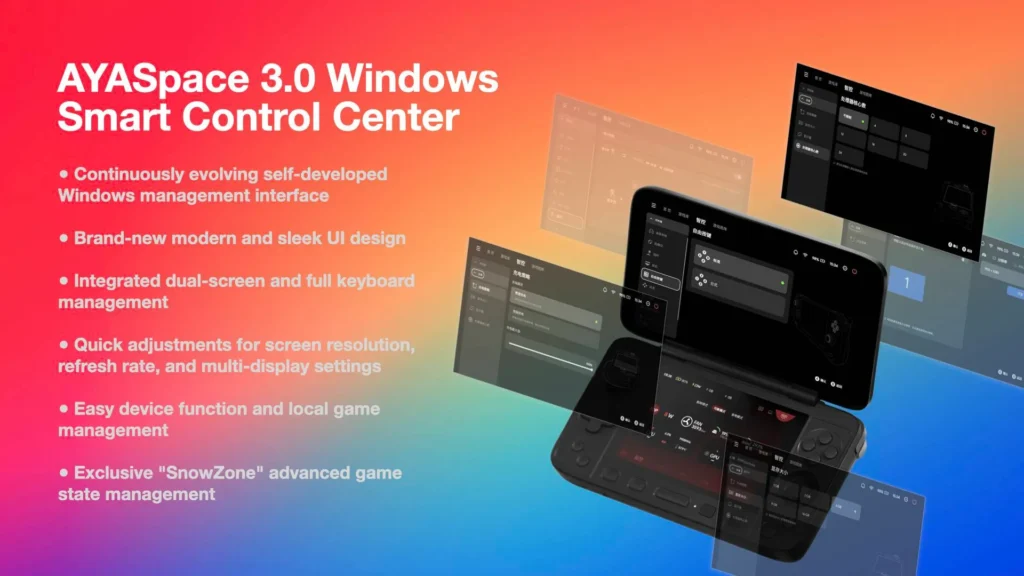

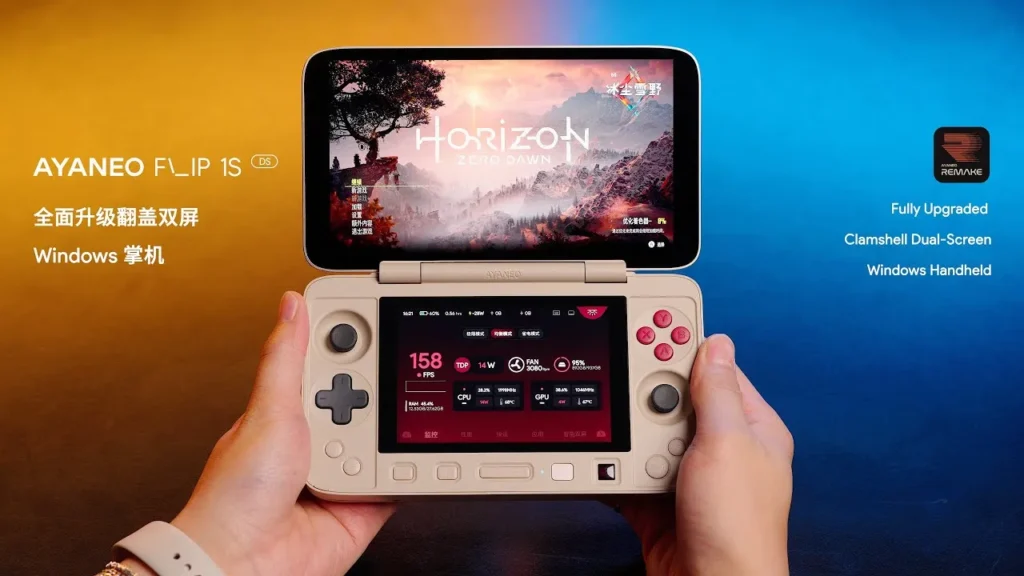

Beyond the hardware, the real unsung hero of the AYANEO Flip 1S DS Review is the software—specifically, the iSpace control center. iSpace turns the second screen into a control hub with quick access tiles for everything from TDP control, screen brightness, Wi-Fi toggles, fan profiles, and performance monitoring.
This isn’t just a gimmick. Having real-time CPU/GPU stats, FPS counter, and even temperature data right on the secondary screen while gaming is a game-changer—literally. You don’t need third-party apps or overlays; it’s all built-in and accessible with a single tap.
Custom Performance Profiles and Quick Settings
Another standout software feature is the ability to create custom performance profiles. Through iSpace, users can dial in their own CPU/GPU frequencies, fan speeds, power limits (TDP), and even assign FPS limits. Want to run Hades at 7W with the bottom screen off for max battery? You can. Need full throttle for Cyberpunk 2077 at 28W with turbo boost on? That’s just another profile away.
These profiles can be toggled on the fly, allowing users to jump from casual to high-performance gaming without needing to exit a game or dig through menus. It’s especially useful when traveling or trying to conserve battery without sacrificing too much performance.
The iSpace software also features a Quick Assistant, allowing users to toggle Bluetooth, airplane mode, screenshot, multitasking view, and more. This makes the entire experience smoother, especially when paired with Windows’ multitasking features.
Gaming Performance
AAA Titles and Frame Rate Expectations
Let’s get to the meat of this AYANEO Flip 1S DS Review—how does it game? Short answer: impressively well. Powered by the Ryzen AI HX 370 and Radeon 890M GPU, the AYANEO Flip 1S DS handles modern titles like Forza Horizon 5, Cyberpunk 2077, and Spider-Man 2 at 1080p medium settings with smooth frame rates.
- Forza Horizon 5: Averaging over 90 FPS at 18W TDP, no FSR needed.
- Cyberpunk 2077: Hits 60–80 FPS with FSR Frame Gen at 25W.
- Spider-Man 2: Requires FSR with Frame Gen for stable 60+ FPS.
These results are impressive for a device with a 45W battery and compact form factor. Even at 900p or 720p, performance remains smooth across a wide range of titles, and for less optimized games, dropping TDP and resolution still yields solid playability.
Indie Gaming and Battery Optimization
Of course, not everyone is chasing AAA benchmarks. For indie games like Celeste, Dead Cells, or Hollow Knight, the AYANEO Flip 1S DS excels—especially at lower TDP profiles like 7W or 10W. In these scenarios, battery life improves drastically while maintaining a steady 60FPS.
By setting the OLED screen to 60Hz and dimming brightness to 50%, you can get up to 5 hours of playtime in lightweight titles. The secondary screen, if disabled, adds further endurance, giving users flexibility between performance and battery conservation.
Emulation Capabilities
Dual-Screen Advantage for DS/3DS Games
One of the most exciting aspects of this AYANEO Flip 1S DS Review is its potential for emulation—especially Nintendo DS and 3DS. With both screens touch-enabled and independently controlled, emulators like MelonDS and Citra feel right at home. The 3:2 aspect ratio of the bottom screen closely mimics the DS layout, creating an authentic handheld Nintendo experience.
The HX 370 chip is more than capable of running these games at full speed with upscaling. Even 3DS titles with demanding effects run smoothly, and the performance monitor on the second screen ensures you know exactly what’s going on under the hood.
Emulator Compatibility and Retro Gaming Experience
Beyond Nintendo, the AYANEO Flip 1S DS supports PS2, GameCube, Dreamcast, and PSP emulation with flying colors. Using RetroArch or standalone emulators, you can run most retro titles in HD, assign controls, and even mirror one display while using the other for menus or streaming tools.
Multitasking is seamless: stream a YouTube tutorial on one screen while configuring a game on the other. It’s an emulation dream setup, whether you’re a casual player or a preservationist looking to digitize your retro library.
Battery Life and Thermal Management
Battery Benchmarks and Real-World Usage
The biggest trade-off in the AYANEO Flip 1S DS Review is the battery size. Coming in at just 45Wh, it’s smaller than many competitors in the high-performance handheld space. But is it a deal-breaker? Not exactly. Thanks to its efficient power profiles and customization via iSpace, you can stretch the battery life far longer than you’d expect—especially when gaming lightly or just using productivity apps.
Let’s break down some real-world battery tests using different TDP profiles:
| Mode | TDP | Brightness | Usage | Battery Life |
|---|---|---|---|---|
| Power Saving | 7W | 50% | Indie gaming (single screen) | ~5 hours |
| Balanced | 15W | 60% | Moderate gaming | ~1 hour 45 minutes |
| Extreme | 28W | 70% | AAA Gaming (dual screens) | ~1 hour |
When both screens are active—especially during graphically intensive sessions—the draw can reach 44 watts total, effectively giving you just over an hour of runtime. However, in balanced mode, which most users will likely rely on for daily use, it strikes a good balance of power and longevity.

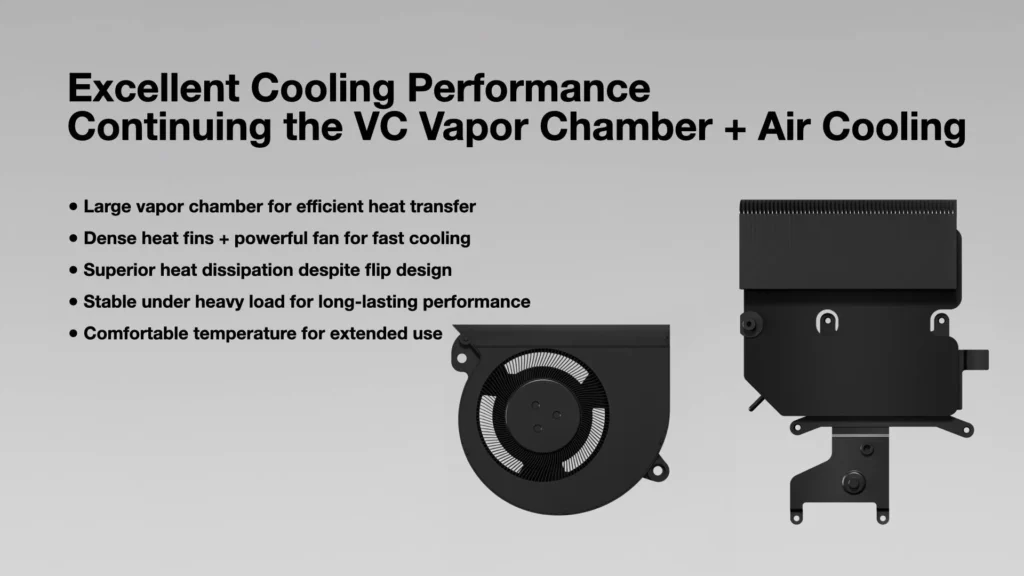

Cooling System and Heat Dissipation in the AYANEO Flip 1S DS Review

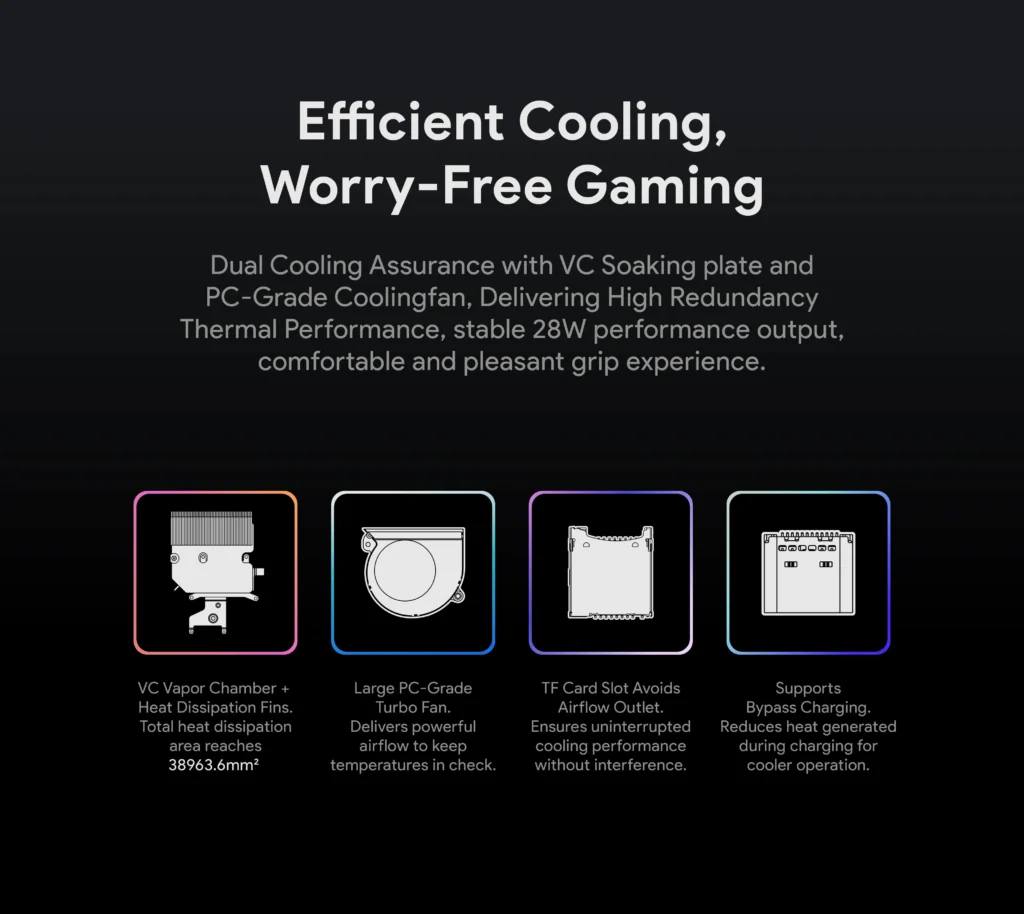

To keep thermals in check, AYANEO equipped the Flip 1S DS with a custom active cooling system, featuring an intake vent at the back, an efficient fan, and strategically placed heat pipes. Even at max load (28W), the device stays relatively cool to the touch, and there’s minimal thermal throttling.
During our tests, the chassis never exceeded 42°C on the exterior, and the internal CPU stayed around 75–80°C even under full gaming load. That’s excellent thermal performance for such a small enclosure.
Fan noise is present at higher TDPs but never overwhelming. It ramps up predictably and does its job efficiently. You can also tweak the fan curve in iSpace, tailoring it to your preferences—whether you want a silent experience or maximum airflow.
Connectivity and I/O Options
Front and Rear Ports Overview
In terms of connectivity, the AYANEO Flip 1S DS Review gives users a full range of options, packing more ports than you’d expect for its compact form. Here’s a breakdown of available ports:
- 2x USB4 Type-C ports (high-speed data and charging)
- 1x 3.5mm audio jack
- 1x MicroSD card slot
- Fingerprint sensor/power button combo
- Front-facing stereo speakers
- Programmable shortcut buttons
- Dedicated escape and performance keys
The USB4 ports are a big win. These provide high-speed data transfer, display output (via DP Alt Mode), and charging, allowing users to connect docks, monitors, and storage devices simultaneously.
Bluetooth, Wi-Fi, and Audio Performance
The AYANEO Flip 1S DS includes Wi-Fi 6E and Bluetooth 5.2, ensuring fast and stable wireless connections whether you’re gaming online or connecting peripherals like controllers, keyboards, or headphones.
Bluetooth performance is rock solid—there’s no noticeable lag or interference during gaming with wireless controllers or audio devices, making it a viable option for a clutter-free desktop setup.
Audio and Display Immersion

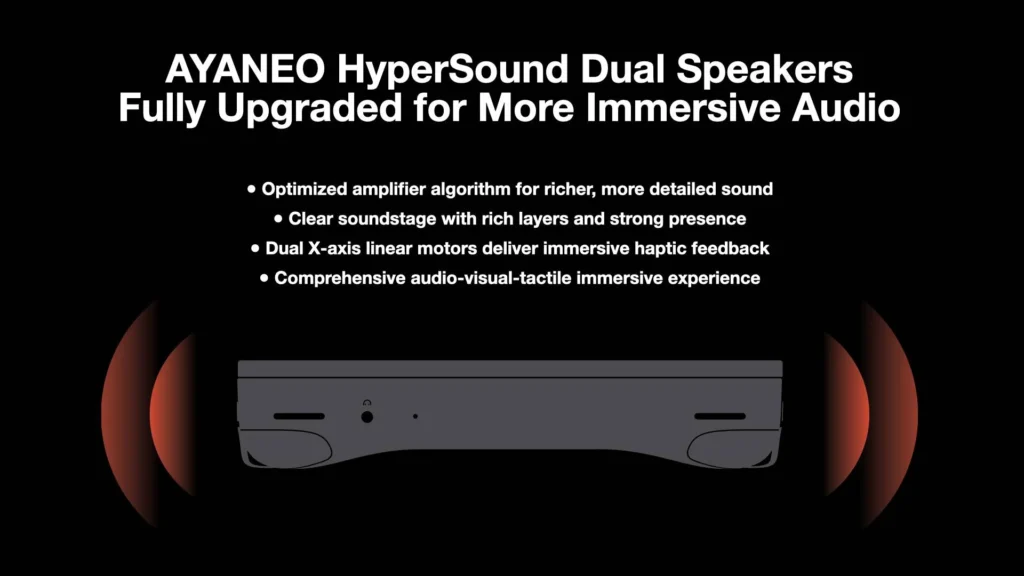

Stereo Speaker Quality
Audio is often neglected in handhelds, but the AYANEO Flip 1S DS brings serious sound. The stereo speakers are front-facing, ensuring the audio reaches the user directly. Compared to other handhelds with downward or rear-facing speakers, the clarity here is night and day.
In games like Spider-Man 2 or Borderlands 3, environmental sounds and dialogue are crisp, with little distortion at high volumes. Watching movies or YouTube content feels immersive, especially when paired with the vibrant OLED panel.
For those who want an even better experience, pairing the device with high-quality Bluetooth headphones or using the 3.5mm jack provides excellent output, with clean signal and strong amplification.
Color Accuracy and Display Customization
The top OLED panel boasts 150% sRGB color accuracy, and it shows. Colors pop, blacks are truly black, and contrast is razor-sharp. Whether you’re gaming or watching video content, the display delivers a visually rich experience.
Brightness levels go up to 800 nits, making it viable for use in bright settings, including outdoor environments. Users can also adjust color profiles, gamma levels, and screen temperature via the built-in settings or third-party calibration tools.
The secondary IPS display complements the OLED beautifully with accurate color reproduction and touch responsiveness. You won’t get OLED-level contrast here, but for multitasking and utility functions, it’s more than sufficient.
Who Is the AYANEO Flip 1S DS For?
Gamers, Creators, and Tinkerers
If there’s one key takeaway from this AYANEO Flip 1S DS Review, it’s this: this handheld isn’t for one type of user. It’s for gamers, creatives, and tech-savvy tinkerers who want more out of a device than just casual gameplay.
- Gamers will love the dual-screen flexibility, powerful GPU performance, and custom TDP profiles for both casual and AAA gaming.
- Creators can multitask like never before—editing on one screen, previewing content on the other.
- Tinkerers will enjoy the deep customization of iSpace, BIOS-level tweaks, and full access to Windows.
Mobile Professionals and Multi-Taskers
Professionals who need portable Windows devices for productivity will find that the AYANEO Flip 1S DS is a Swiss Army knife. With a physical keyboard dock, it could easily replace a travel laptop for many users. The secondary screen makes note-taking, Zoom calls, and multitasking far more accessible in a handheld form.
Even for students or frequent travelers, the Flip offers portability with functionality that no other handheld currently provides. It’s not just a gaming device—it’s a tool for those who demand more from their gear.
Pros and Cons: AYANEO Flip 1S DS
Highlighting the Strengths
- Dual-screen design adds massive functionality
- 7-inch OLED at 144Hz is one of the best displays on a handheld
- HX 370 CPU delivers high-end performance
- Great software with custom profiles and monitoring tools
- Multiple configurations with up to 64GB RAM and 2TB storage
- Solid controls with hall-effect triggers and swappable grips
- Good thermals despite high wattage performance
Discussing the Weaknesses
- 45Wh battery limits AAA game time
- No VRR support despite 144Hz OLED
- Secondary screen can be underutilized by non-tech-savvy users
- Recessed sticks and low D-pad could feel awkward for some
- Price point may be high for casual users
Final Verdict: AYANEO Flip 1S DS Review
Value for Money in the AYANEO Flip 1S DS Review
To wrap up this comprehensive AYANEO Flip 1S DS Review, one thing is crystal clear: this isn’t just a new form factor—it’s a whole new tier of handheld gaming and productivity. With unmatched performance, thoughtful design, and groundbreaking dual-screen functionality, the AYANEO Flip 1S DS offers something few others do.
Is it perfect? Not quite. The limited battery life and premium pricing might push some users away. But if you’re looking for a unique handheld that doubles as a workstation, emulator hub, and AAA-capable gaming rig, there’s simply nothing else quite like it on the market.
Comparing Alternatives in the Market
Compared to the Steam Deck, ROG Ally, or ONEXPLAYER, the AYANEO Flip 1S DS stands out for its dual screens, OLED display, and highly customizable software. If those features are important to you—and you’re willing to pay a premium for innovation—this is the handheld to get.
Conclusion: AYANEO Flip 1S DS Review
The AYANEO Flip 1S DS redefines what a handheld gaming device can be. With a dual-screen setup that’s both functional and fun, OLED brilliance, stellar performance, and full Windows access, it’s not just a niche gadget—it’s a productivity powerhouse and entertainment beast rolled into one.
Whether you’re a power user, gamer, or creative on the go, this device earns its place in your tech arsenal.
FAQs: AYANEO Flip 1S DS Review
1. Is the AYANEO Flip 1S DS good for emulation?
Absolutely. Its dual-screen setup is perfect for DS and 3DS emulation, while the powerful GPU and CPU combo support upscaling and advanced retro gaming across multiple platforms.
2. What’s the battery life like on the AYANEO Flip 1S DS?
Battery life ranges from 1 hour in extreme gaming modes to about 5 hours in low-power indie gaming scenarios. It’s very customizable depending on your use case.
3. Can you game on the second screen?
While it’s not intended as a primary gaming display, you can run games on either screen independently, mirror displays, or use it for emulators that support dual-screen layouts.
4. Which CPU should you pick in the AYANEO Flip 1S DS Review: 8840U or HX 370?
If you want budget-friendly emulation and light gaming, go for the 8840U. If you need top-tier AAA performance and multitasking, the HX 370 is the way to go.
5. Is the AYANEO Flip 1S DS worth buying in 2025?
Yes—if you value innovation, multitasking, and performance in a portable form, it’s among the most advanced handhelds currently available.
